ASF Armored Sight Flow Indicators

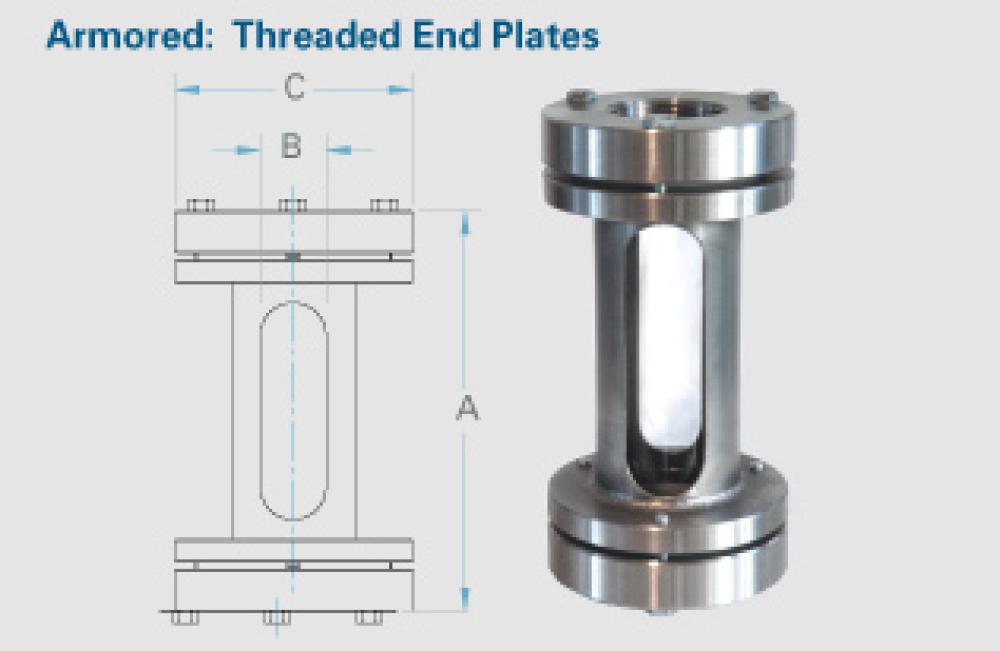

Armored: Threaded End Plates sf-arm-th-table(1) Size (Inches) Dimensions Pressure Rating A B C 0.50 7.00 0.63 2.50 150 psig (10.34 bar) 0.75 7.00 0.88 3.00 150 psig (10.34 bar) 1.00 7.00 1.00 3.00 150 psig (10.34 bar) 1.25 7.63 1.25 4.00 150 psig (10.34 bar) 1.50 7.63 1.25 4.00 150 psig (10.34 bar) 2.00 7.63 1.25 4.50 120 psig (8.27 bar) *Dimension “A” is + 0.13 Armored: Flanged End Plates sf-arm-fl-main-table(1) Size (Inches) Dimensions Pressure Rating A B C 0.50 6.13 0.63 3.50 150 psig (10.34 bar) 0.75 6.38 0.88 3.88 150 psig (10.34 bar) 1.00 6.38 1.00 4.25 150 psig (10.34 bar) 1.50 6.75 1.25 5.00 150 psig (10.34 bar) 2.00 7.63 1.25 6.00 120 psig (8.27 bar) 2.50 7.88 1.50 7.00 100 psig (6.89 bar) 3.00 8.13 1.75 7.50 85 psig (5.86 bar) 4.00 8.13 1.75 9.00 90 psig (6.20 bar) *Dimension “A” is + 0.13 Connection Types F = Flanged T = Threaded Standard Sizes for Flanged Models 0.50″ 0.75″ 1.00″ 1.50″ 2.00″ 2.50″ 3.00 4.00″ Standard Sizes for Threaded Models 0.50″ 0.75″ 1.00″ 1.50″ 2.00″ Seals V = Fluorocarbon A = Aflas B = Buna-N TE = PTFE Encapsulated Silicone E = Ethylene Propylene K = Kalrez

Kategori: Valve
Brand: Kenco - USA
