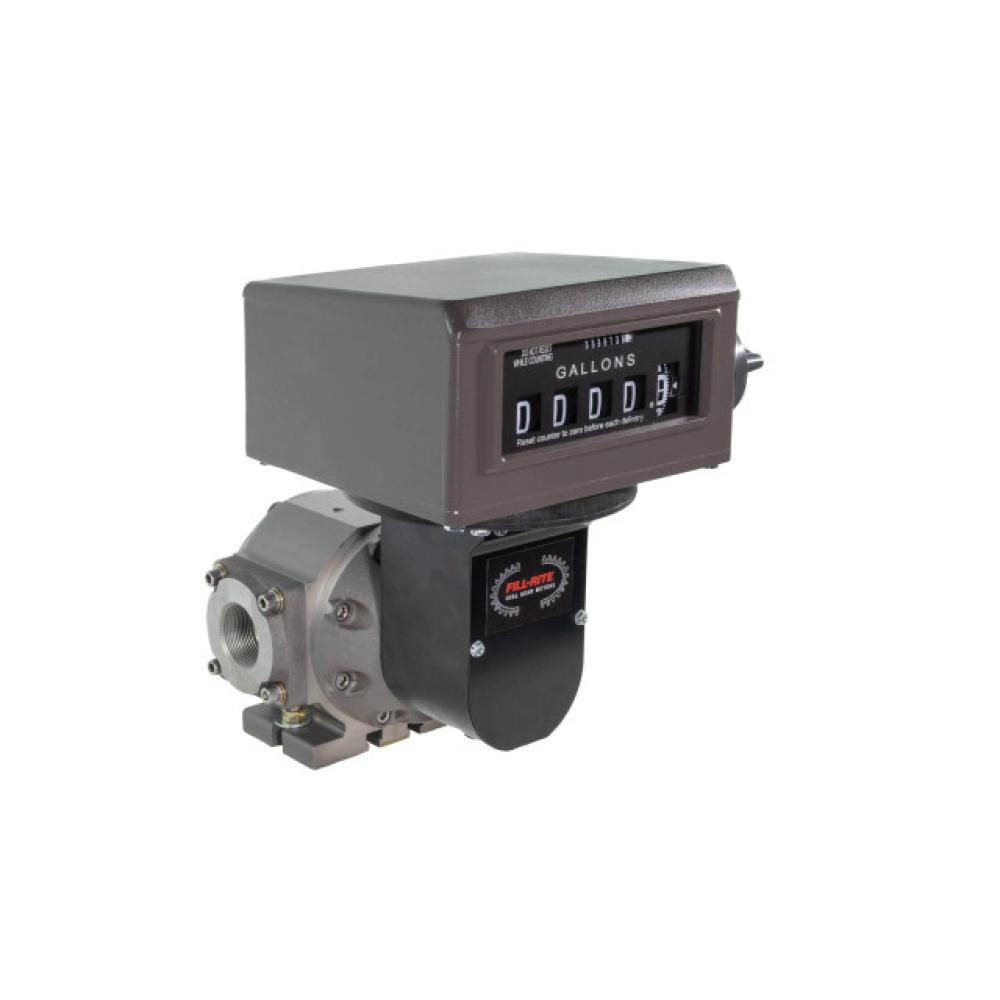

PD Meter Fill-Rite TS NPT Oval Gear Meter w/ Mechanical Register

The TS20AV04ATCBMXAXX is a 100% non-ferrous 5-digit mechanical Standard Fuels transfer meter. This meter is equipped with 2" NPT threads and is designed to register 15-150 gallons per minute at 0.05% repeatability. Fill-Rite's TS20 Mechanical Series of oval gear fuel transfer meters are ideal for high-volume custody transfer applications, registering with a 5-digit resettable counter and an 8-digit totalizer. Fill-Rite Oval Gear Meters utilize positive displacement (PD) technology due to its elite performance across a wide range of fluid viscosities. Positive displacement technology affords low pressure loss across the meter chamber and minimum slippage, ultimately yielding a very high degree of accuracy and linearity over the life of the meter. The TS Series is well suited for use in fuels process / transfer, high speed batching and loading, tank truck meters, LPG systems, stationary dispensing, industrial and petrochemical refining / processing. Combined with a mechanical register, printer, or solenoid batching, it is possible to build an application specific system that delivers performance, accuracy, and easy maintenance making the TS Series the intelligent choice. Although no flow meter is ideal for ALL operating conditions, Fill-Rite positive displacement meters offer the following advantages: No straight pipe requirements on the flow meter inlet and outlet Weights and Measures Approved for custody-transfer in the US, Canada, EU, and Australia Easily maintained over the life of the meter due to minimal moving parts Excellent accuracy and linearity Adaptable to a multitude of accessories like registers, strainers, and air eliminators Required pump horsepower is lower than other meter technologies, resulting in lower initial system costs and long-term operating costs
