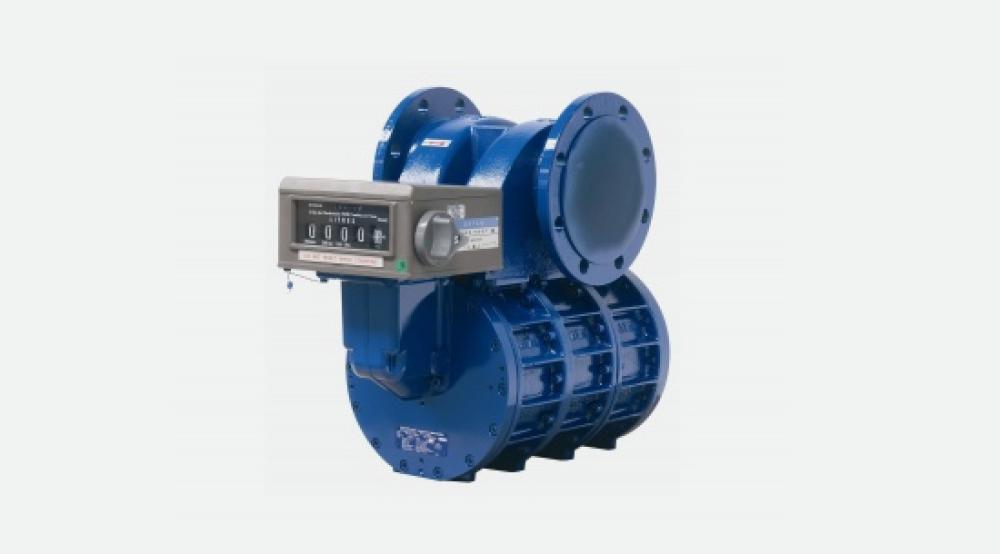

Positive Deplacement Meter SATAM ZC17
The SATAM Positive Displacement meter is a system with freely-moving blades used to measure white petroleum products such as fuels, bio-fuels and refined liquid hydrocarbons. Its simple design using only two pairs of blades and one moving rotor means Satam PD meter is exceptionally robust and also generates significant savings on maintenance costs as the meter boasts outstanding metering accuracy and stability.
Kategori: PD Meter
Brand:
Volume accuracy: < 0,15 % / Option < 0,10 % Repeatability: < 0.02 % Model Connection Measuring range ZC17-12 DN50 1.2 à 12 m3/h ZC17-24 DN50 2.4 à 24 m3/h ZC17-48 DN50 4.8 à 48 m3/h ZC17-80 DN80 8 à 80 m3/h ZC17-150 DN100 15 à 150 m3/h ZC17-250 DN150 25 à 250 m3/h ZC17-330 D200 333à 330 m3/h
