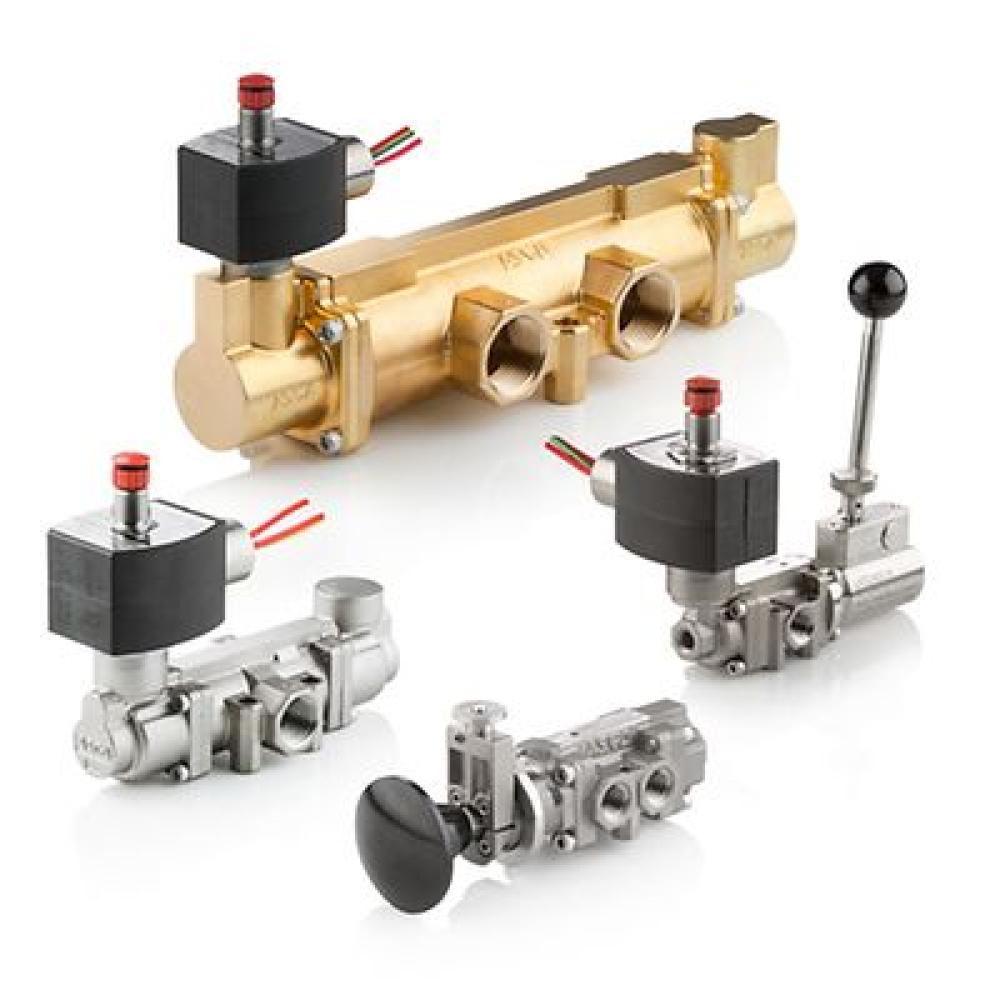

ASCO™ 362 3-Way Spool Valves
The ASCO Series 362, also known as 8362, 3-way 2-position spool valves are designed for valve piloting in the upstream, midstream, and downstream oil and gas markets. The valves incorporate ASCO´s proven solenoid technology for unequaled reliability in mission-critical applications. The Series 362 is a three-way valve made for single-acting process valve applications. It is available in 1/4-inch through 1-inch, brass and 316L stainless steel constructions for corrosion resistance in harsh environments.
Kategori: Solenoid
Brand: Asco-Emerson
Valve ActuationPneumatic - Air Pilot, Pneumatic - Latching, Solenoid, Solenoid - Direct Acting, Solenoid - Latching Body MaterialStainless Steel, Brass MediaAir, Inert Gas, Natural Gas Pipe / Port Size1/4 "; 3/8 "; 1/2 "; 3/4 "; 1 " Port TypeNPTF Function3 way - 3/2 Normally Closed, Closed Center, 3 way - 3/2 Normally Open, 3 way - 3/2 Normally Closed FlowFrom 1.8 to 15.5 Cv (1.55 to 13.4 Kv) Voltage120 AC, 12 DC, 24 DC | 50, 60 Max Differential / Max Operating PressureVacuum to 150 PSIG Operating EnvironmentCorrosive, Hazardous, Outdoor Standards / RegulationsClass I Div 1, Type 4X, Type 6, Type 6P, UL
