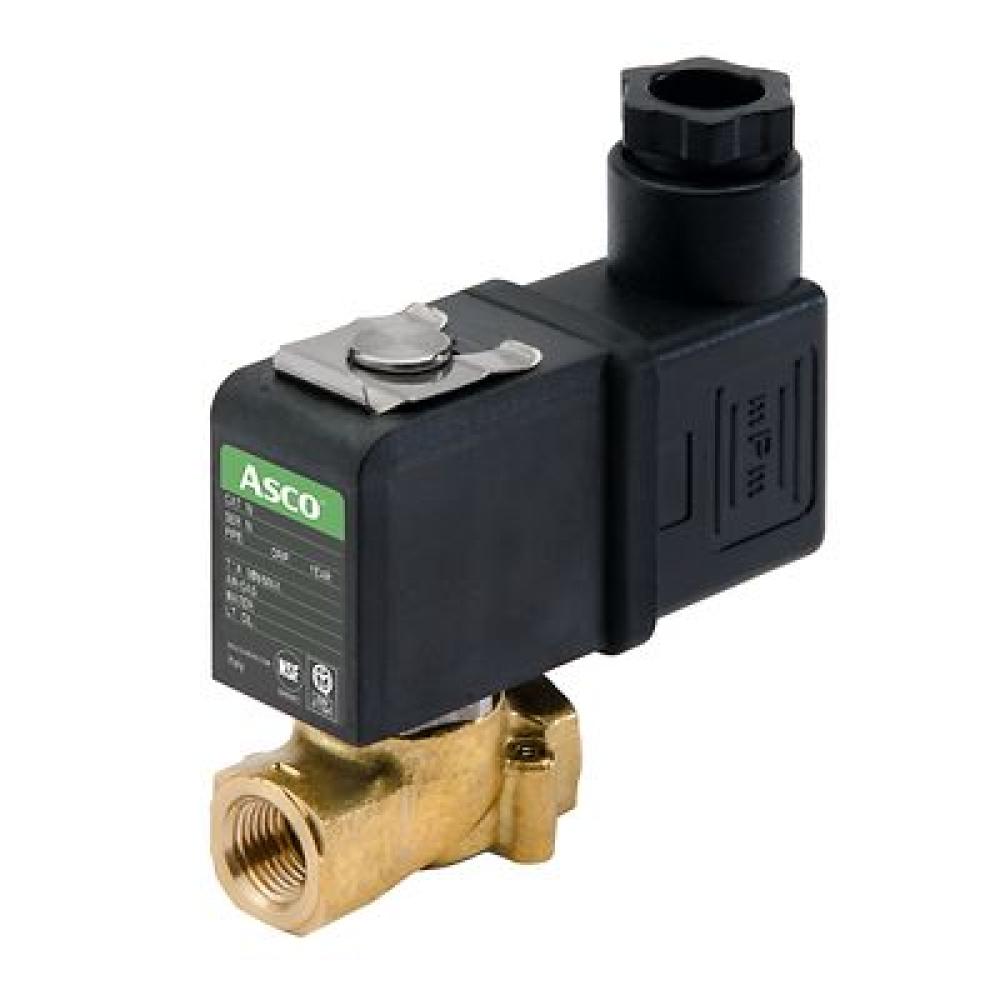

ASCO™ 256 2-Way Compact Solenoid Valves
The ASCO Series 256, also known as 8256, 2-way compact solenoid valves are designed for shutoff control for a wide range of Industrial and commercial industry applications. The valves have a range of third-party approvals for applications ranging from fuel oil and gas burners to potable water and food service applications. Their compact design fits in tight spaces, they are mountable in any position and are available in multiple manifold configurations. The valves are ideal for bottling lines, and commercial kitchen, laundry, and heating equipment.
Kategori: Solenoid
Brand: Asco-Emerson
Valve ActuationSolenoid - Direct Acting Body MaterialBrass; Stainless Steel; Composite (PPS) MediaAir, Inert Gas; Light Oil; Water Pipe / Port Size1/4 "; 1/8 "; Pad mount Port TypeNPTF, G, Push-to-Connect, Nut-for-Tube (Compression Fitting), and Pad-Mount Function2 way - 2/2 Normally Closed or Normally Open FlowFrom 0.05 - 0.48 Kv (0.06 - 0.55 Cv) Max Differential / Max Operating PressureVacuum to 10.3 Bar; Vacuum to 150 PSIG; 10.3-34.5 Bar; 150-500 PSIG Operating EnvironmentIndoor to IP67 (EN 60529) Standards / RegulationsCSA; IP67; NSF; UL
