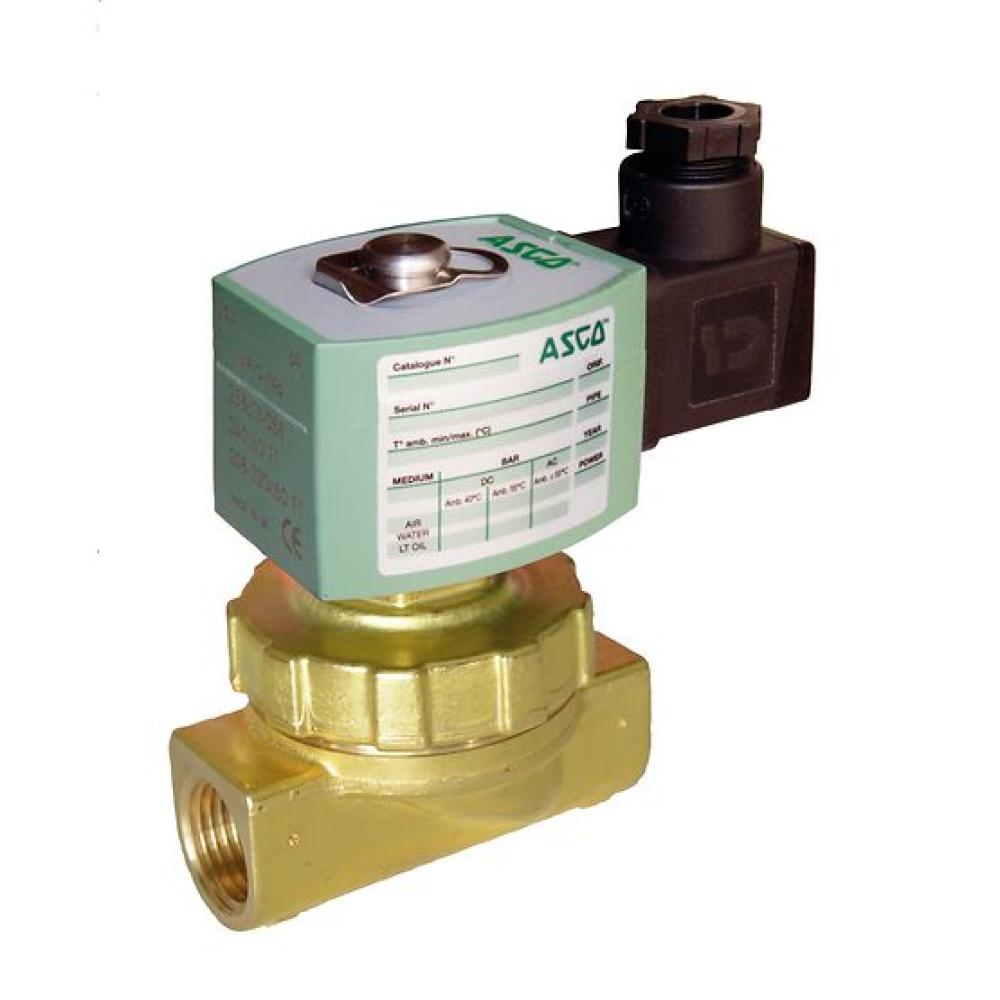

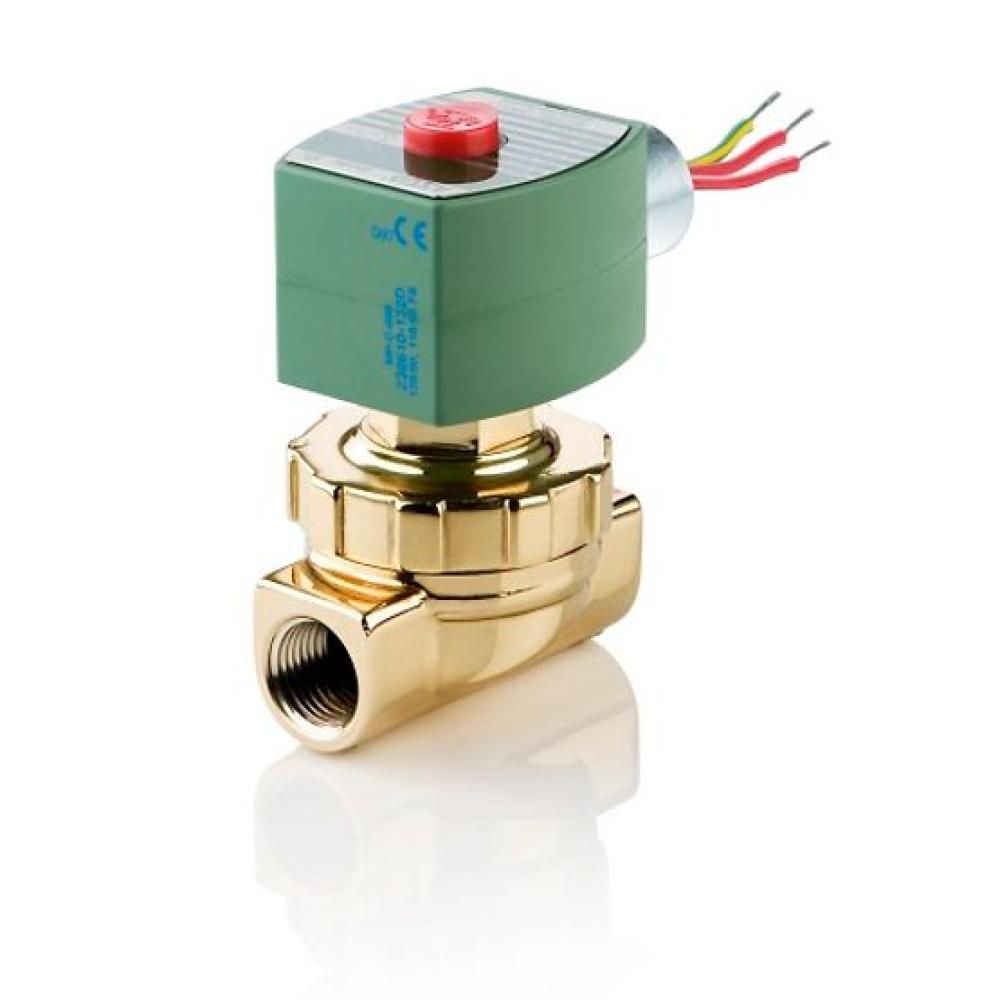

ASCO™ Series 220 Steam and Hot Water Solenoid Valves
The ASCO Series 220 steam and hot water valves provides up to 60% more flow than competitive offerings. That means a 3/4-inch valve flow from ASCO equals the competitors 1-inch flow. The Series 220 floating PTFE diaphragm provides positive sealing and improved durability - up to four times longer than other valves. Its threaded bonnet is easy to remove for quick inspection and serviceability reducing downtime and maintenance costs.
Kategori: Solenoid
Brand: Asco-Emerson
Valve ActuationSolenoid Body MaterialBrass MediaHot Water, Steam Pipe / Port Size1/2 "; 3/8 "; 3/4 "; 1 "; 1 1/4 "; 1 1/2 "; 2 "; 2 1/2 " Port TypeNPTF Function2 way - 2/2 Normally Closed, 2 way - 2/2 Normally Open FlowFrom 2.0 Cv to 6.0 Cv, From 6.0 Cv to 14.0 Cv, Over 14.0 Cv Voltage110 AC, 12 DC, 120 AC, 120 DC, 208 AC, 220 AC, 24 DC, 24 AC, 240 AC, 48 DC, 480 AC - 50, 50/60, 60 Operating EnvironmentHazardous, Indoor, Outdoor, Washdown Standards / RegulationsCSA, Type 1, Type 2, Type 3, Type 3S, Type 4, Type 4X, Type 6, Type 6P, Type 7, Type 9, UL
