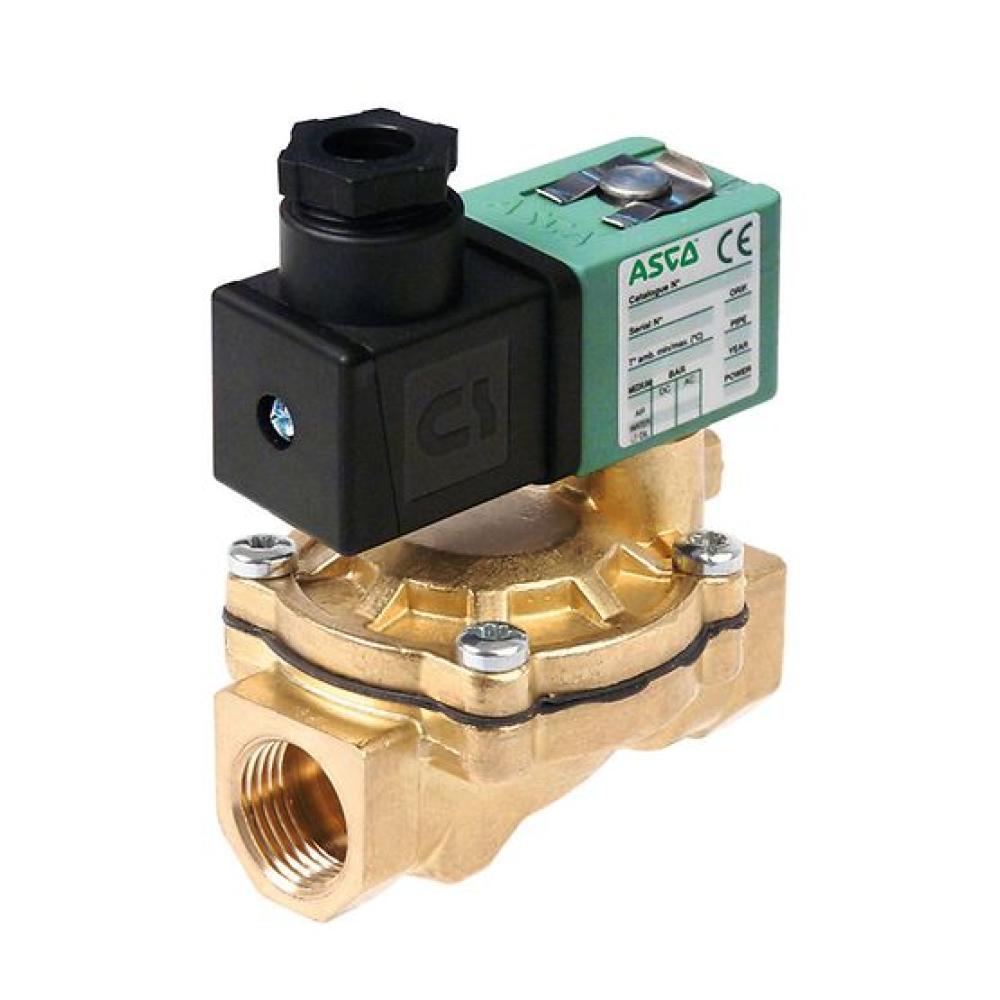

ASCO™ 238 Pilot General Service Solenoid Valves
The ASCO Series 238, also known as 8238, is a line of general service valves designed to handle air, inert gas, water, and light oil. The 2-way pilot-operated solenoid valve’s compact construction saves space, reduces installation time, and simplifies service while its short stroke increases cycle life. The 238 Series is suitable for air ride suspension systems, commercial kitchen and laundry equipment, packaging, and water and wastewater systems.
Kategori: Solenoid
Brand: Asco-Emerson
Valve ActuationSolenoid Body MaterialBrass MediaAir, Inert Gas, Light Oil, Water Pipe / Port Size½ "; ⅜ "; ¾ "; 1 "; ½ "; ¼ " Port TypeNPTF Function2 way - 2/2 Normally Closed, 2 way - 2/2 Normally Open FlowFrom 1.0 Cv to 2.0 Cv, From 2.0 Cv to 6.0 Cv, From 6.0 Cv to 14.0 Cv; Over 14.0 Cv 288, From .86 to 1.73 Kv, From 1.73 to 5.19 Kv, From 5.19 to 12 Kv, Over 12 kv Voltage110 AC,24 AC;120 AC;220 AC;12 DC;24 DC;115 AC;208 AC;480 AC | 50;50/60;60 Max Differential / Max Operating PressureVacuum to 10.3 Bar;Vacuum to 150 PSIG;10.3-34.5 Bar;150-500 PSIG Operating EnvironmentIndoor
