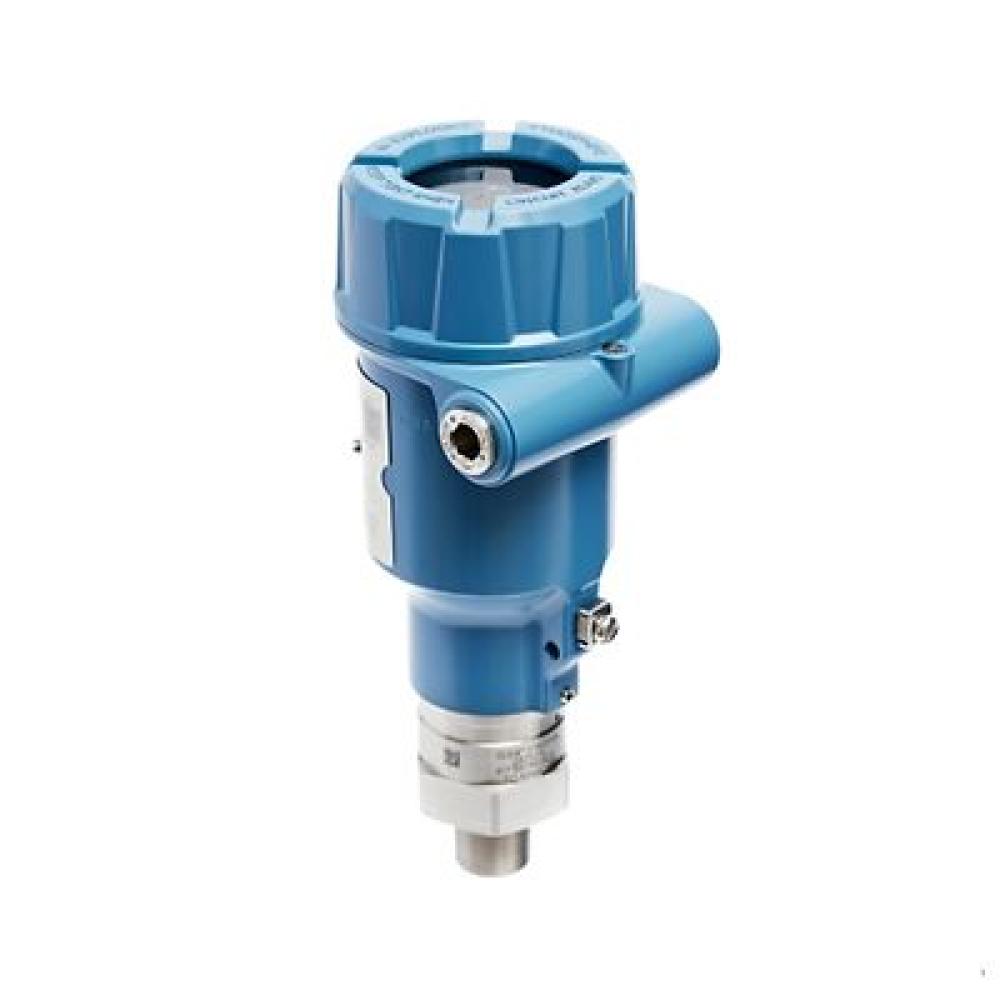

Rosemount™ 3408 Level Transmitter - Non-Contacting Radar
The Rosemount 3408 Non-Contacting Radar Level Transmitter is a versatile FMCW radar, which features Smart Echo Supervision™ technology, and is suitable for level measurement and overfill prevention in many industries, including chemical. Smart features save time and maximize efficiency for trouble-free operations, simplifying commissioning, operation and testing. Smart diagnostics help you proactively plan maintenance and optional Bluetooth® connectivity allows convenient configuration and maintenance. Manual or automatic verification at scheduled intervals can be conducted from the control room at any time without process interruptions. Perform proof-testing remotely and in-situ with onboard functionality. NAMUR type tested and third party certified to IEC61508 for use in safety critical applications.
Kategori: Transmitter
Brand: Rosemount-Emerson
AccuracyStandard: ± 0.08 in. (± 2 mm) Ultra accuracy: ± 0.04 in. (± 1mm) Measurement Range98 ft. (30 m) Operating Pressure-15 to 363 psig (-1 to 25 bar) Operating Temperature-76 to 392 °F (-60 to 200 °C) Power Supply12-35 VDC (30 VDC in Intrinsically Safe installations) Communication Protocol4-20mA HART7®, optional Bluetooth® connectivity Measurement Frequency80 GHz Certifications/ApprovalsATEX/UKEX, IECEx, USA, Canadian, see full specs for complete list of certifications SafetyIEC 61508 certified to SIL 2, Overfill prevention according to WHG/TÜV Antenna TypeProcess Seal, Lens Antenna, ATAP Lens Antenna
