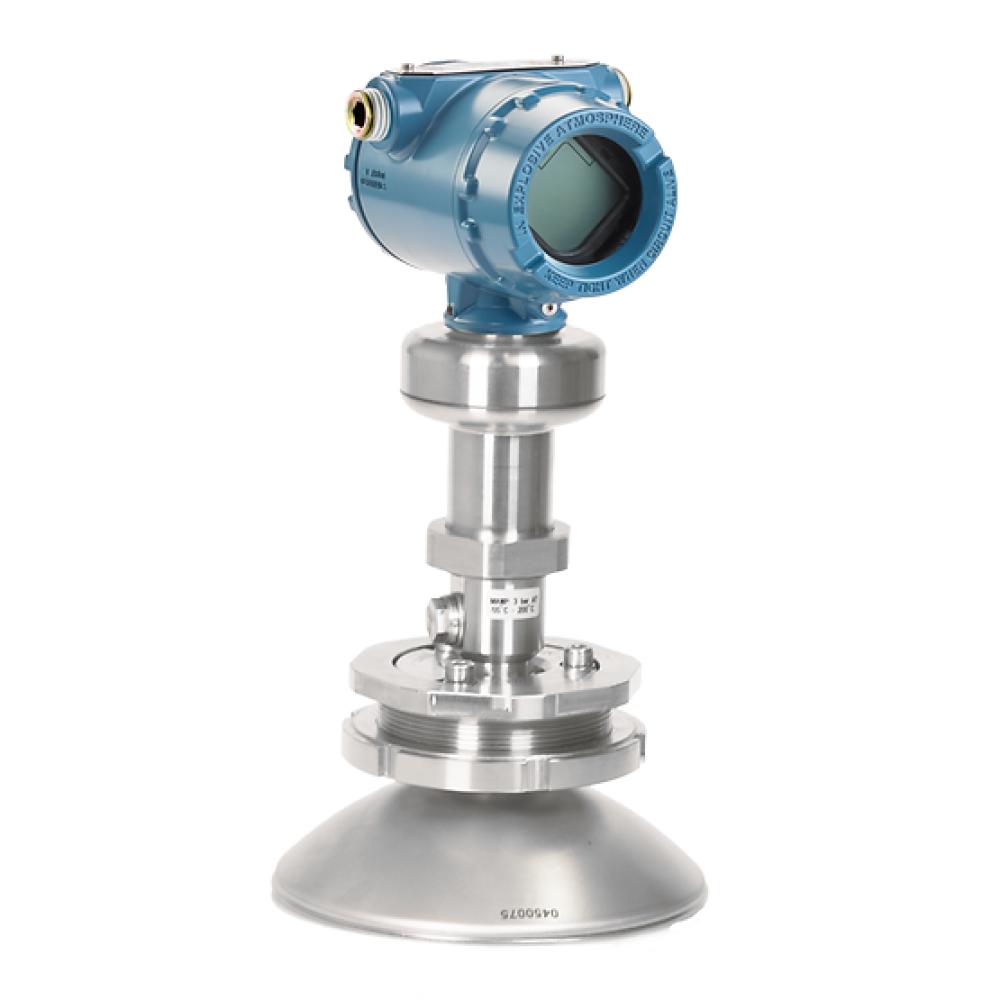

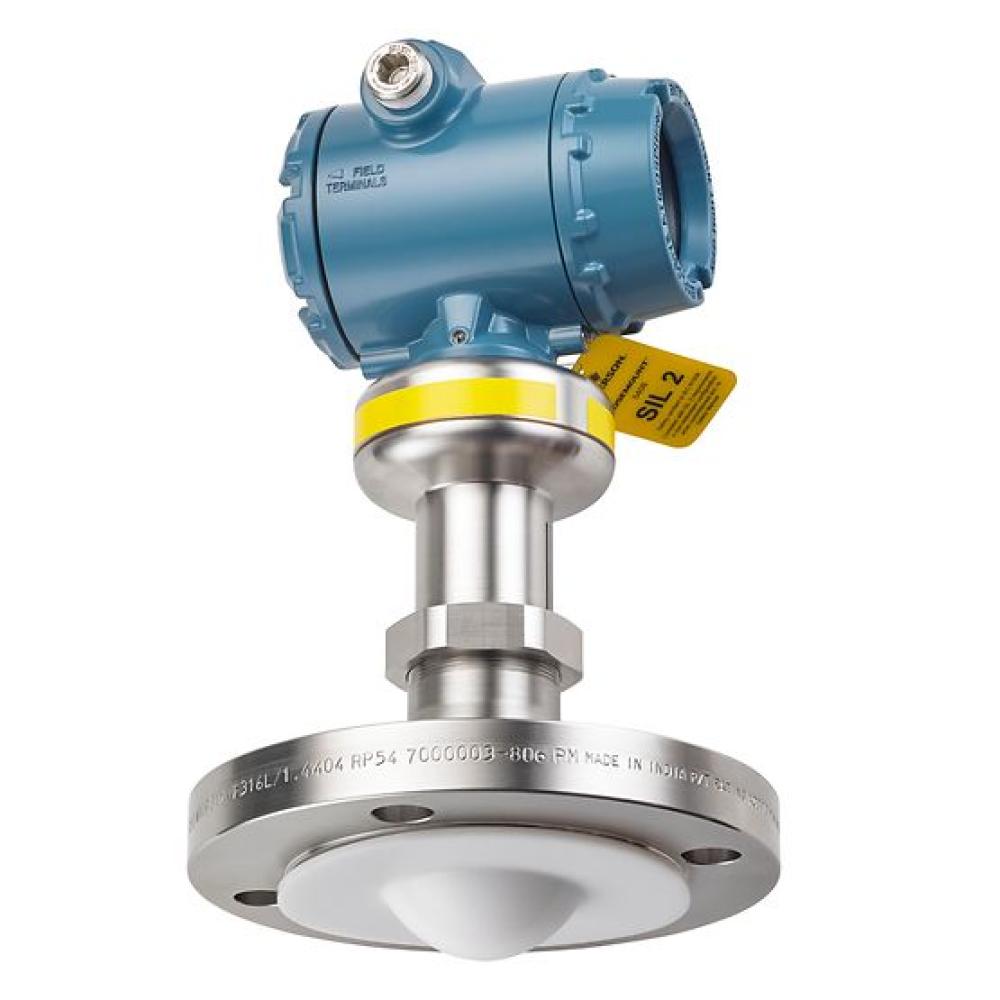

Rosemount™ 5408 Level Transmitter - Non-Contacting Radar
The Rosemount™ 5408 Non-Contacting Radar Level Transmitter uses enhanced technology and Human Centered Design to deliver accurate, reliable measurements on both liquid and solid materials. Using two-wire FMCW and Smart Echo Supervision technologies, the Rosemount 5408 deploys a continuous echo to maximize radar signal strength and produce a more robust and reliable measurement. Delivering ease-of-use at every touch point, the Rosemount 5408 uses an intuitive software interface to guide the operator through installation, commissioning, proof-testing and maintenance. Powerful onboard diagnostics suite proactively monitors transmitter health and alerts if there is an issue. Safety certified to IEC 61508 for SIL 2 applications, the Rosemount 5408:SIS reduces cost of risk, increases efficiency and protects people and the environment.
Kategori: Transmitter
Brand: Rosemount-Emerson
AccuracyStandard: ± 0.08 in. (± 2 mm) Ultra accuracy: ± 0.04in. (± 1mm) Measurement Range492 ft (150m), 130 ft (40 m) for Rosemount 5408:SIS in Safety mode Operating Pressure-15 to 1450 psi (-1 to 100 bar) Operating Temperature-76 to +482 °F (-60 to +250 °C) Power Supply4-20mA/HART: 12-42.4 VDC (12-30 VDC in Intrinsically Safe installations) Foundation™ Fieldbus: 9-32 VDC (9-30 VDC in Intrinsically Safe installations and 9-17.5 VDC for FISCO) Communication Protocol4-20mA HART® (2-wire loop-powered), Foundation™ Fieldbus Certifications/ApprovalsATEX, IECEx, USA, Canadian, 3-A, CRN, see full specs for complete list of certifications SafetyIEC 61508 certified to SIL 2 TÜV tested and WHG approved for overfill prevention Antenna typeCone antenna, Process seal antenna, Parabolic antenna DiagnosticsEnhanced diagnostics enabling proactive maintenance: Signal Quality Metrics, Smart Meter Verification WarrantyUp to 10-year limited warranty
