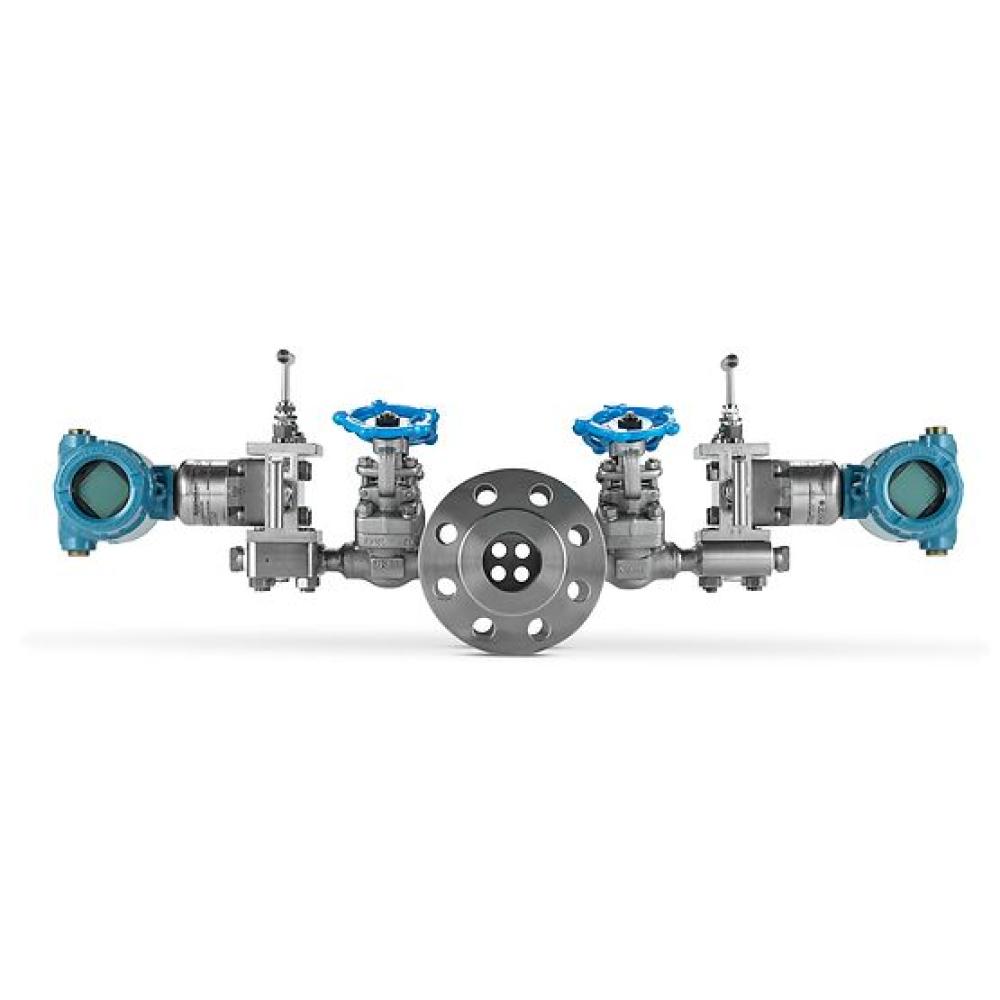

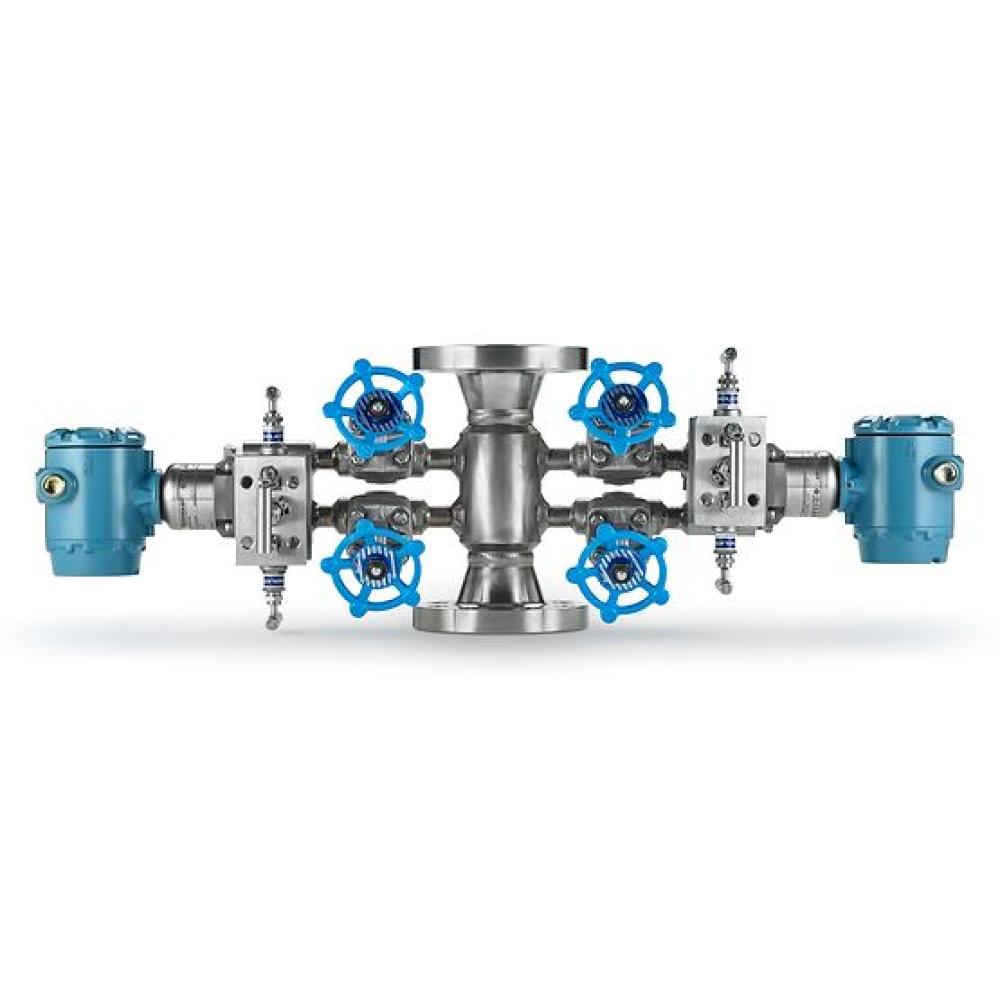

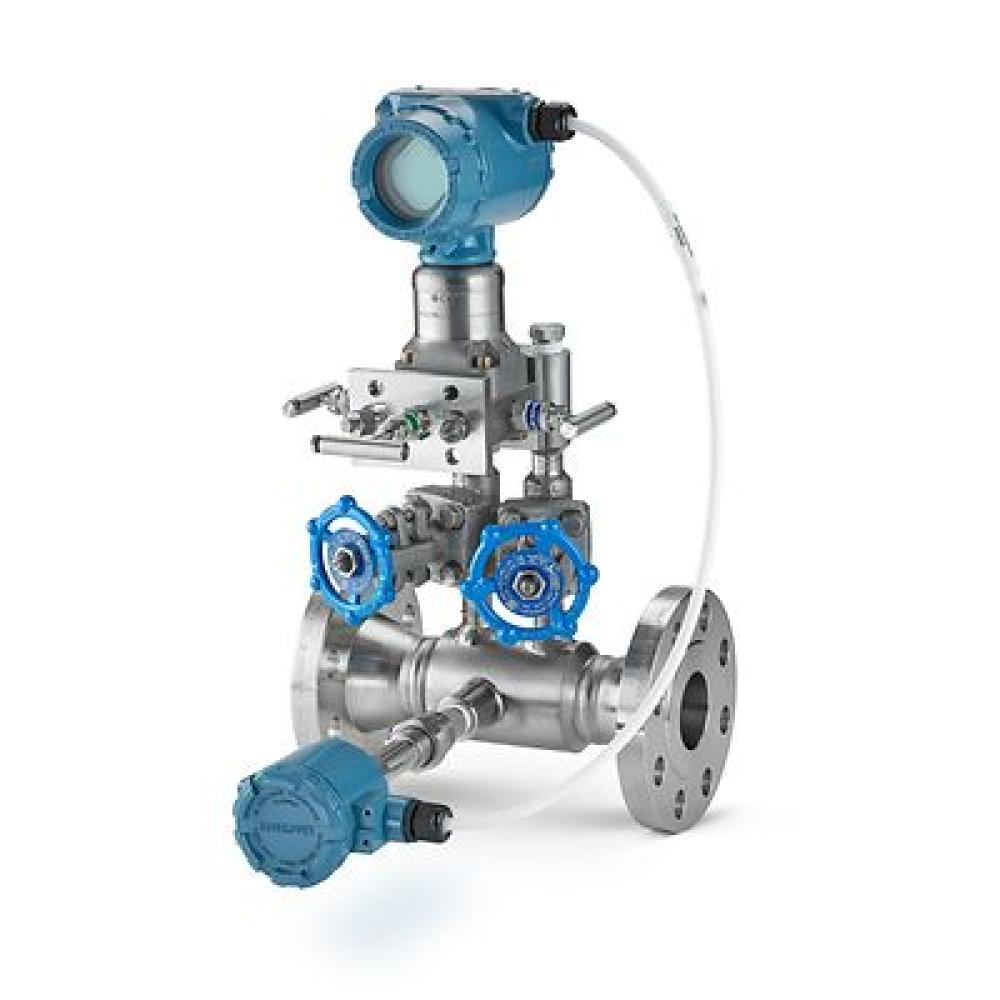

Rosemount™ 9295 Process Flow Meter
The Rosemount 9295 Process Flow Meter offers exceptional performance in a complete integrated package. Engineered for ease-of-use, the 9295 incorporates proven Conditioning Orifice Technology to eliminate straight run requirements while the roddable impulse lines allow blockages to be removed without process shutdown. In addition, optional temperature measurement reduces installation cost and allows for fully compensated flow measurement.
Kategori: Transmitter
Brand: Micro Motion-Emerson
Line Size2 to 6 in (50 to 150 mm) Discharge Coefficient UncertaintyCalibrated: ±0.3 to 0.5%; Standard: ±0.75 to 1.5% Flow Turndown10:1 or better Max. Operating PressureASME/ANSI B16.5 900# Process Temperature Range-20 to 850 °F (-29 to 454°C ) Process MediaLiquid, Gas, Steam Process Wetted Material316 SST, Carbon Steel Warranty5-year limited warranty
