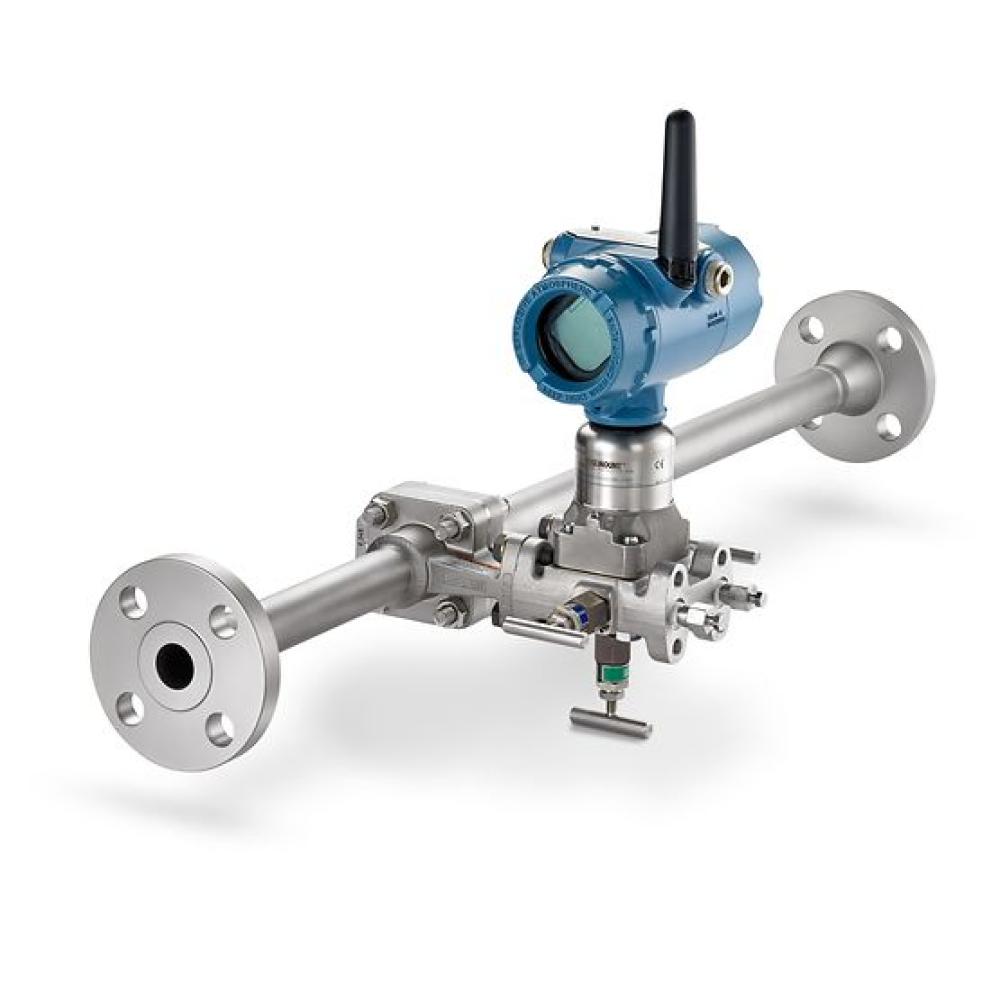

Rosemount™ 3051SFP Integral Orifice Flow Meter
The Rosemount 3051SFP Integral Orifice Flow Meter is a no-equal multivariable device customized with an integral orifice primary element. This meter run assembly provides easy installation and is engineered to facilitate highly accurate flow measurement in small line sizes (0.5 - 1.5 in. or 15 - 40 mm). This device is also engineered with built-in flow calculations for fully compensated mass flow measurements and is offered with multiple communication protocols including WirelessHART®.
Kategori: Transmitter
Brand: Rosemount-Emerson
WarrantyUp to 15-year limited warranty RangedownUp to 200:1 (14:1 flow turndown) Measurement RangeUp to 1000 inH2O (2,48 bar) differential, Up to 3626 psia (250,00 bar) absolute, Up to 3626 psig (250,00 bar) gage Line Size0.5 to 1.5 in. (15 to 40 mm) OutputDifferential pressure, static pressure, process temperature, scaled variable, mass flow, volumetric flow, energy flow Communication Protocol4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus Process Wetted Material316 SST DiagnosticsBasic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line Certifications/ApprovalsSIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE, hazardous location, see full specs for complete list of certifications Update Rate1 sec. to 60 min., user selectable Power Module LifeUp to 10-year life, field replaceable (order separately) Wireless RangeLong range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km)
