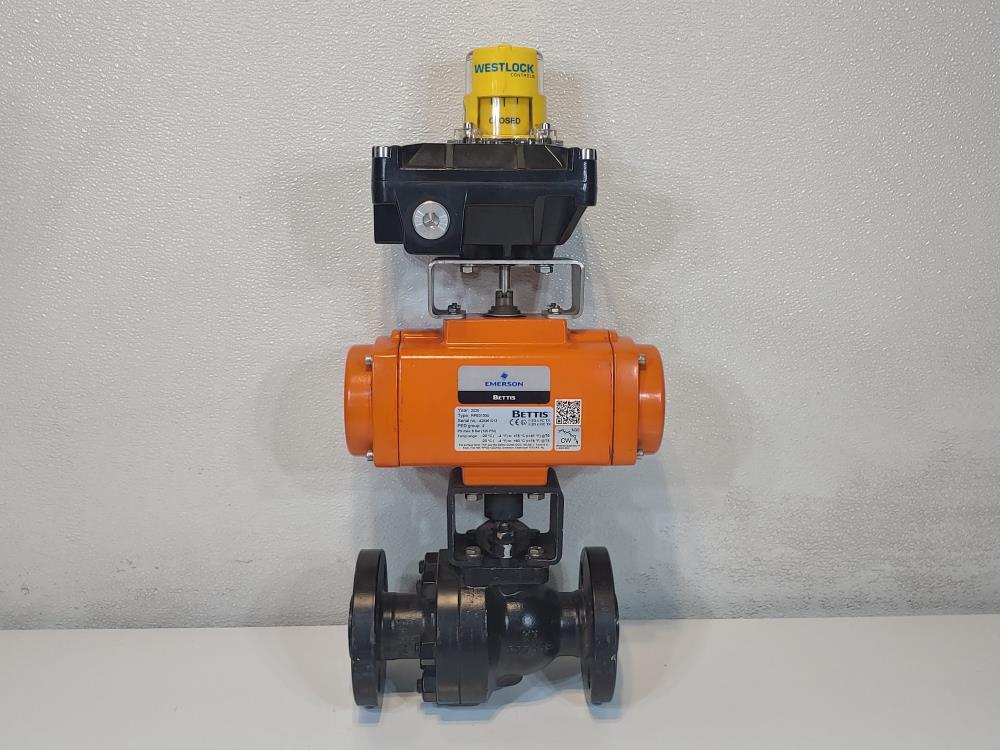

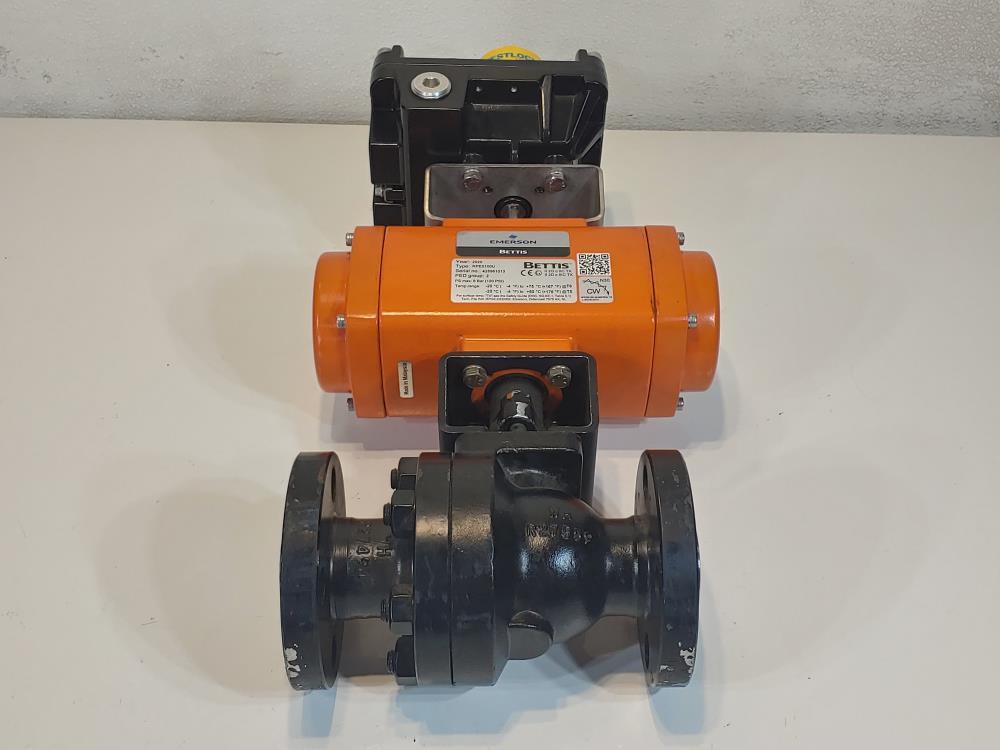

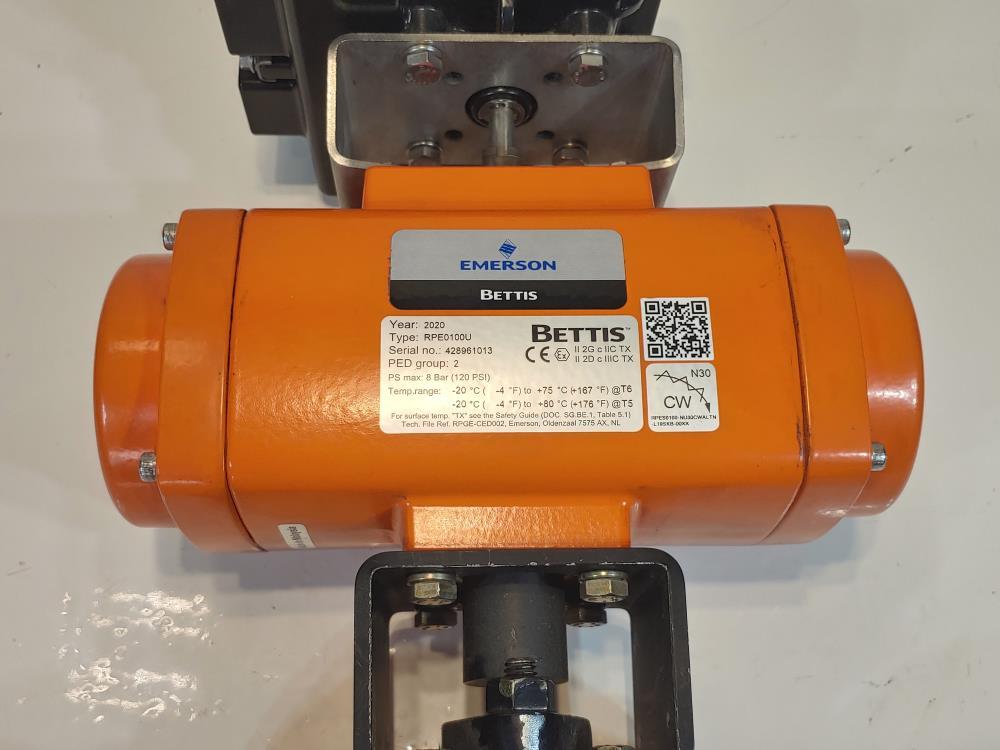

Bettis RPE-Series Pneumatic Rack and Pinion Valve Actuator
The Bettis RPE-series is a rack & pinion actuator, available in 12 sizes as spring return or double acting models. The actuators have a tough and reliable design and are intended to operate quarter turn valves or any other quarter turn application. The Bettis RPE-series comes with coated body and endcaps, has a special high corrosion resistant aluminum pinion design and has stainless steel fasteners, resulting in a long lasting durable actuator design.
Kategori: Actuator Valve
Brand: Bettis-Emerson
Power SourcePneumatic Product TypePneumatic Rack and Pinion Actuator ActuationDouble-acting, Spring-return, Quarter-turn CertificationsROHS3, REACH, ATEX, PED and Machinery Directives, SIL3, IP66/67 Control TypeOn/Off, Positioning, Modulating, ESD Valve TypeBall, butterfly, plug and any other quarter turn application Operating TemperatureStandard -20°C to +80°C (-4°F to +176°F). Optional high and low temperature options Torque12 sizes: 12 to 4100 Nm (106 to 36,474 lbf.in) Operating Pressureup to 8.3 bar / 120 psi
