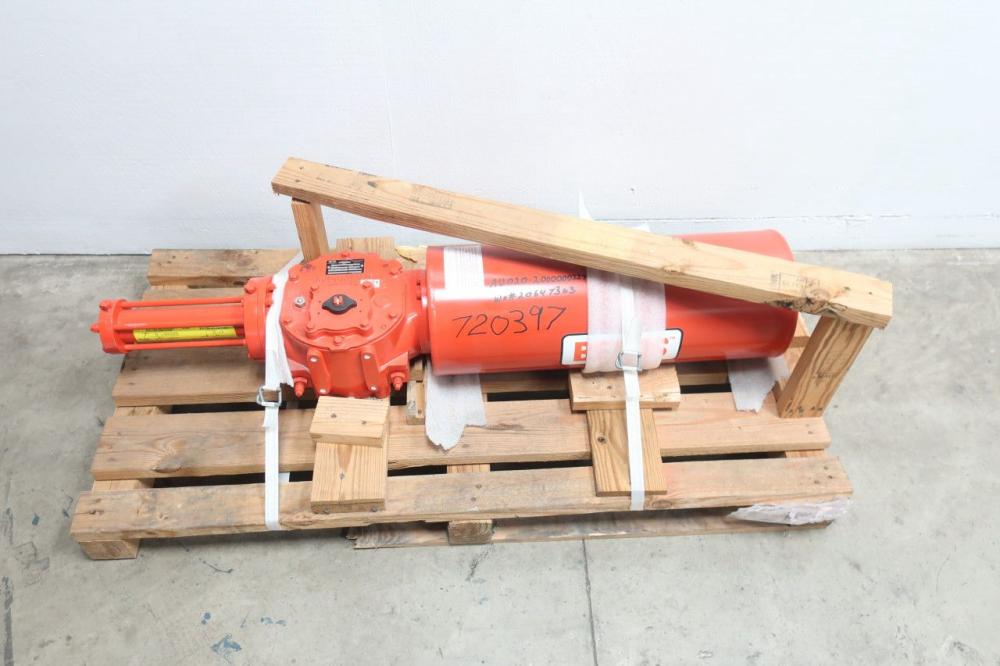

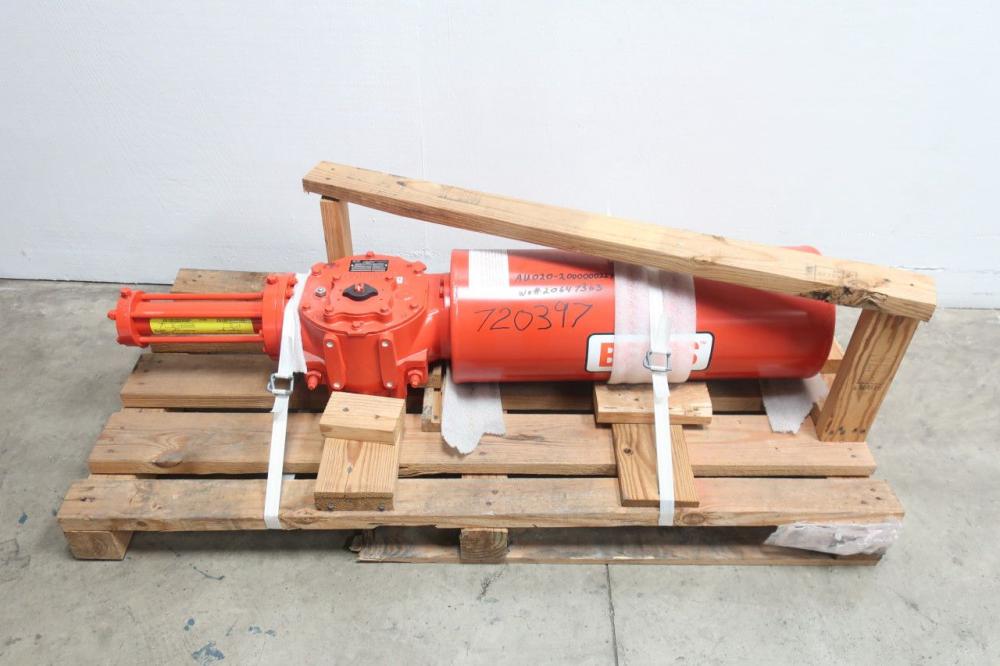

Hydraulic Valve Actuator Bettis
The Bettis G-Series hydraulic, scotch yoke, valve actuator is used for operating ball, butterfly or plug valves along with louvers, dampers and other 90 degree rotating mechanisms. Suitable for use in demanding SIL-required applications.
Kategori: Control Valves
Brand: Bettis-Emerson
Power SourceHydraulic Product TypeHydraulic Actuator ActuationFail-Safe, Quarter-turn, Spring-Return, Double-Acting CertificationsATEX, PED, (CE), SIL capable,TRCU/EAC/GOST, ABS Control TypeOn/off Valve TypeBall, Butterfly, Plug, Triple Offset Valves, Other Quarter-Turn Devices Operating TemperatureStandard range: -20°F to +200°F (-29°C to +93°C). Optional range: to -40°F (-40°C) or to +350°F (+177°C) Torque/ThrustSpring-return models in excess of 3,000,000 lbs-in (339,000 Nm), Double-acting 12,581 - 6,000,000 lbs-in (1420 - 678,000 Nm) Operating PressureUp to 5,000 psig (345 bar) Operating Pressureup to 5,000 psig (345 bar)
